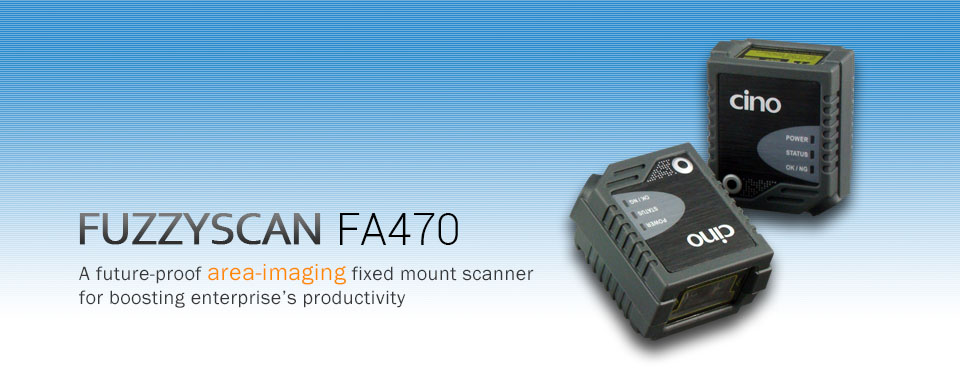

FA470 Series

Equipped with FuzzyScan Imaging Technology 3.0, IP54 ultra-compact yet durable over-molded construction, the CINO FA470 series fixed mount scanner comes with industry-leading scanning performance, functionality and reliability. The FA470 Area Imaging fixed mount scanner delivers a future-proof and superior cost-performance solution to help enterprises increase their efficiency and productivity.

  • Ultra-compact and easy mounting design for flexible integration
  • IP54 durable over-molded construction
  • Patent-pending heat-dissipating technology ensures product reliability
  • Support RS232, USB HID, and USB COM host interfaces
  • Support both serial trigger command and external trigger
  • Useful user-defined serial trigger command
  • Universal model supports OK and NG output signals for precise reading control
  • Easily identify the optimal mounting position with test mode
  • DataWizard Premium for scanned data manipulation and security protection
  • High-density and standard range models satisfy various data capture needs
  • Side-view model for space-limited applications




Durable for harsh environment

Thanks to IP54 over-molded design, FA470 can protect internal components from dust and water ingression. It also can withstand multiple drops to concrete from 1.5 meters. So, high reliability is guaranteed.

Size does matter

The size of a product plays a crucial role in system integration in an environment where space is constrained. With the ultra-compact design of FA470 series, space allocation will not be an issue.

Status at a glance

FA470 series is equipped with multiple and intuitive LED status indicators and loud beeper. The operation status is clear at a glance.

Practical test mode

Once you have determined the desired location to install the scanner, the thoughtful test mode helps system integrator to identify the most optimal mounting position easily and quickly.

User-defined serial trigger

If you want to use FA470 to replace the current scanners, the useful user-defined serial trigger function provides a flexible solution without impacting your existing application programs.

Useful operation modes

The FA470 provides five operation modes, including trigger, alternative, level, presentation and force modes. Both the presentation and force modes support triggerless operation. You don’t need to use either external trigger or serial trigger to activate the scanning. You can choose the specific operation mode to meet the requirement of your application.

Various interface options

Both RS232 and USB host interfaces are available in different models, including USB model, RS232 model, and universal model. The universal model supports both USB and RS232 interfaces. These options allow system integrators to customize their specific applications.

Heat dissipating

Thanks to the patent-pending heat-dissipating feature. The FA470 series is ideal for various applications where intensive and uninterrupted scanning is needed.

Versatile universal model

The universal model offers better flexibility and functionality. It not only supports RS232, USB HID and USBCOM port emulation host interfaces, but also provides external trigger function. Moreover, it provides OK/NG signal output for more precise reading control.

All you can scan

Powered by the innovative FuzzyScan Imaging Technology 3.0, FA470 series reads most popular 1D, stacked, and 2D bar codes omnidirectionally. Besides, it is capable of capturing barcodes accurately in a flash, whether the bar codes are printed on paper, plastic card or displayed on the screen of mobile phone.

Superb reading performance and readability

Superb reading performance and readability. Thanks to the exceptional decoding capability, FA470 series performs outstanding scanning performance and superior adaption to read most real-world bar codes, such as low contrast, damaged, smudged, distorted and poorly printed barcodes. This makes the whole scanning process more efficient, and minimize extra handling cost.

DataWizard Premium

Powered by DataWizard Premium, FA470 series not only provides advanced data formatting capability,the embedded Security Mechanismbut also offers a simple way for your host application to work with the preset FA470 to protect your business investment without additional cost.

High density and standard range models

FA470 series offers High Density and Standard Range models to fulfill various applications. So, no matter what the resolution of the bar code or the reading range is, the FA470 series can meet your different demands.

Two choices of scan direction

FA470 Series offers Front-view and Side-view versions to satisfy various scanning and mechanical design requirements. The side-view version is an ideal solution for the environment where space is constrained.
