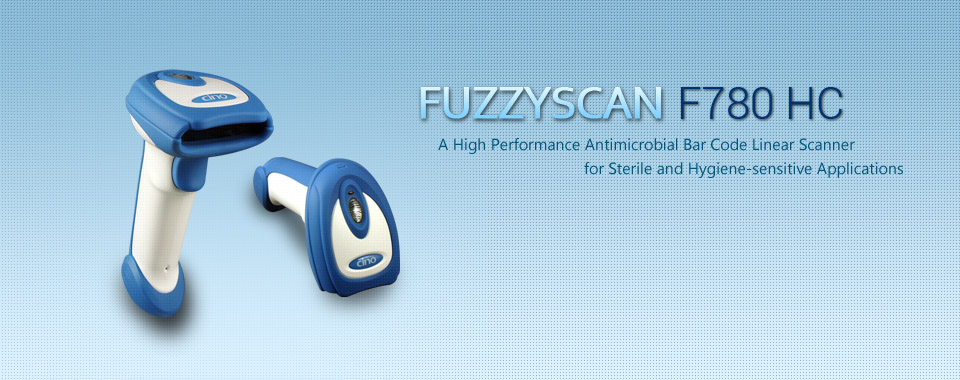

F780 HC Series

  • Disinfectant-ready enclosure with antimicrobial additives
  • Compliance with JIS Z2801 : 2000 antimicrobial standard
  • Supports PDF417 and Composite Codes
  • Reads various challenging and problematic barcodes
  • Reads electronic barcodes from smartphone screens
  • Withstands drops from 2m to concrete
  • Clear audio and visual feedback
  • Built-in vibrator for tactile confirmations
  • Configuration can be done through iCode
  • Advanced data formatting with DataWizard Premium
  • System security development using DataWizard Premium





In environments such as hospitals, clinics, laboratories or pharmacies, work tools are susceptible to cross-contamination. With its disinfectant-ready housing and robust design, Cino’s F780 HC is tailor-made for the stringent demands of hygiene-sensitive industries. Whenever beeping sounds are inadequate or unsuitable, the built-in vibrator can provide tactile confirmation of good reads. F780 HC’s outstanding attributes help users get the job done with superior efficiency.


Sanitation-Friendly

Inclusion of Antimicrobial Additives

F780 HC’s housing incorporates a silver inorganic antimicrobial agent that will not wear off during its lifetime. This provides an extra layer of protection against the growth of microorganisms on its surface.


Disinfectant-Ready Enclosure

The scanner’s plastic exterior is also disinfectant-ready, allowing it to be wiped-down with Cino’s recommended cleaning solutions (see Specifications below) without harming the enclosure.


Ideal for Hygiene-Sensitive Environments

F780 HC complies with the JIS Z2801:2000 standard and serves a wide range of industries where hygiene is paramount, such as healthcare, pharmaceutical, food, and more.


Scan All Your Needs

Tackle Stacked Symbologies

F780 HC is designed to scan a vast array of 1D and stacked symbologies, whether displayed on paper, plastic or electronically. Stacked-linear barcodes that can be read by the scanner include PDF417, GS1 Databar Stacked, and composite codes.


Ready for Challenges

Empowered by the FuzzyScan imaging platform, this scanner is primed to read various challenging and problematic barcodes. For example, poor quality, distorted, dirty, damaged, and overwrapped barcodes, as well as electronic barcodes on dimly-lit displays.


One Tool for Different Jobs

F780 HC delivers superior readings on high-density barcodes, in addition to exceptional scan range on regular barcodes. Its high performance and capabilities make it a versatile scanner that is well-suited for diverse applications.


Enhanced User Experience

Sharp Aimer for Rapid Targe

The scanner’s sharp LED beam helps users aim faster and with greater accuracy. F780 HC also projects a bright red illumination that allows for rapid barcode captures, even under low ambient lighting.


Clear Audio and Visual Feedbacks

This barcode scanner contains a programmable beeper with adjustable sound volume. Its LED lights provide conspicuous, multi-color indications. A built-in vibrator offers tactile confirmation of good reads, which is ideal for instances where the scanner’s beeps might disturb patients, or when the beeping may be drowned out by loud background noise.


Built for Lasting Performance

When we designed the F780 HC, durability and ergonomics were at the top of our priority list. With an over-mold construction, this imager can withstand 2.0-meter drops to concrete. Its handle allows for a natural grip, offering superior comfort throughout the day. Moreover, the imager’s elegant outline is sure to complement the decors of professional establishments.


Value Beyond Measure

Simplified Configuration Proce

The iCode is a configuration barcode. It can be embedded with more than one command, thereby enabling the simultaneous change of numerous parameters. Instead of configuring their Cino imagers with multiple barcodes, users can achieve the same results with a single iCode.
Simply choose your desired settings in the FuzzyScan PowerTool, and click on the “iCode” button to generate a comprehensive barcode that embodies them all.


Customized Functionalities

DataWizard Premium lets you write data or security scripts which can then be used to program Cino scanners for customized tasks. The script language is similar to BASIC and easy to learn for experienced programmers. This exclusive feature is included in the FuzzyScan PowerTool and offered to Cino clients without extra charge.


Advanced Data Formatting

Through data scripts, your scanners can be programmed for intricate formatting duties that would otherwise be assigned to the host device. For example: parsing raw data from driver licenses, adding preambles or postambles, and more.


System Security

Set your host system to prompt scanners for a validation key before allowing connection. Develop a security script containing the validation key and install this script on approved scanners. This will prevent random scanners from accessing the host system.
